T-14 Armata – scale 1/16 – 3D printed kit

225328,00 Ft – 286184,00 Ft

Set of 3D printed parts – T-14 Armata – 1/16 scale

Unassembled kit, printed with high quality ASA and PET(G)
– NO PLA!!!
Detailed parts printed with resin.

1235 printed parts (including tracks)
552 pieces of various hardware (optional).

The number of parts may vary slightly, depending on the desired configuration.
After ordering, we will contact you to clarify the configuration.
You can also contact us in advance.

Total weight of plastic parts is more than 3,5kg (7,7lbs).
Weight of the assembled vehicle is about 4,5 – 5,0kg (11lbs).

Printed in top configuration (with the rubber parts etc.).

Read the description below.

Join Waitlist We will inform you when the product arrives in stock. Please leave your valid email address below.
SKU: KITARMATA116 Categories: ,
  • detailed building instructions
  • compatible with a large number of gearboxes with 23mm and 59mm shafts (recommending 59mm)
  • integrated tracks tensioner
  • possibility of using aftermarket tracks (for T-90, 3 pieces of tracks are needed)
  • rims of the wheels and fender aprons made of “rubber”
  • main switch under the functional commanders hatch
  • functional headlights
  • bearings on every important place
  • every screw has its own nut. there is no plastic screw thread.
  • a place for a PFV camera under the functional cover (2 types – 8x8mm or 14x14mm FPV CADDXFPV Ant)
  • functional service hatch on the turret
  • the turret rotates by 360°
  • the machinegun turret rotates by 360°
  • choice between 3 types of cannon (1. airsoft, 2. classic HL elevation and recoil, 3. servo controlled with recoil)
  • place for IR diode next to the cannon
  • possible to deliver with an alternate machinegun turret with built-in HL IR receiver (or both types)
  • comes with two different types of suspension (both are part of the kit).

Guaranted full technical support and access to the spare parts.

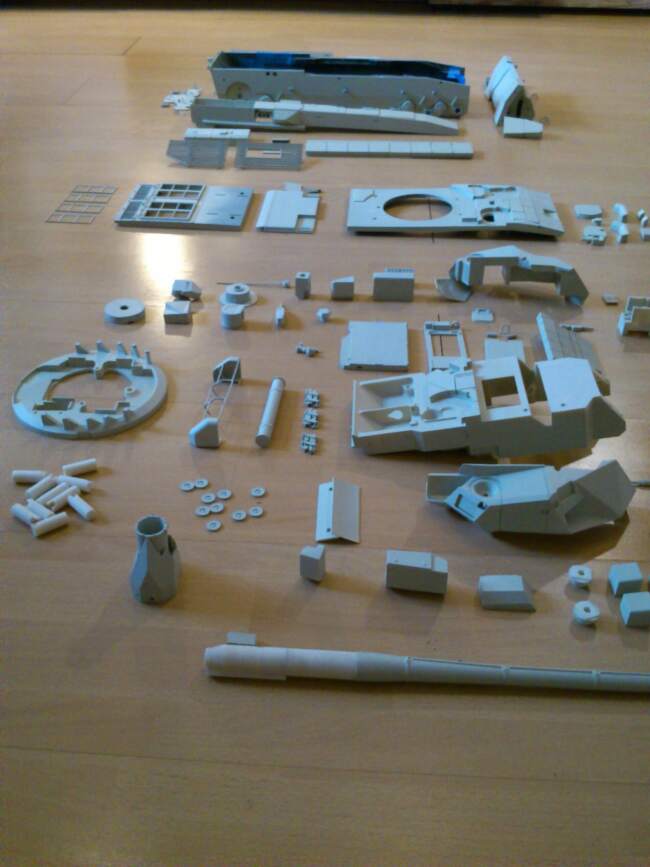

Pictures of the 3D printed parts
Pictures of the assembled model

Assembly and printing guides



The hardware package does not include a control unit, transmitter, smoke generator or sound module.

If you are interested in these components, please send us a message via the contact form.



Contents of the Basic Hardware package:

PART PCS
M1,6×4 screw 2
M1,6×6 screw 2
M1,6×10 screw 2
M2x6 screw 6
M2x8 screw 14
M2x10 screw 6
M2x12 screw 4
M3x6 screw 6
M3x10 screw 19
M3x12 screw 40
M3x16 screw 10
M3x20 screw 20
M3x25 screw 12
M3x30 screw 12
M3x40 screw 4
M3x50 screw 14
M4x25 screw 2
M6x80 HEX screw 2
Screw for gearbox 2

M1,6 nut 1
M2 nut 31
M3 low profile nut 34
M3 nut 163
M4 nut 6
M6 low profile nut 8

M3 washer 57

1,6×38,5mm pin (wire) 336
2x18mm pin 2
2x20mm pin 8
2x25mm pin 1
2x60mm pin 1
3x30mm pin 1

MF126zz – 6x12x13,2x3mm 4
MF148zz – 8x14x15,6×3,5mm 2
623zz – 3x10x4mm 59
633zz – 3x13x5mm 3

360° servo 2
SG90 servo 3
Heng Long RC tank steel gearbox 2
3mm LED 2



Weight 3,6 kg
Dimensions 50 × 40 × 30 cm
Variant

3D printed parts + BASIC HARDWARE KIT, 3D printed parts WITHOUT hardware.

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.
